Quadra-sensor camera
21 TOPS of computing power
Faster, more accurate target recognition, motion analysis and image processing, for power defect recognition, face recognition and motion detection.

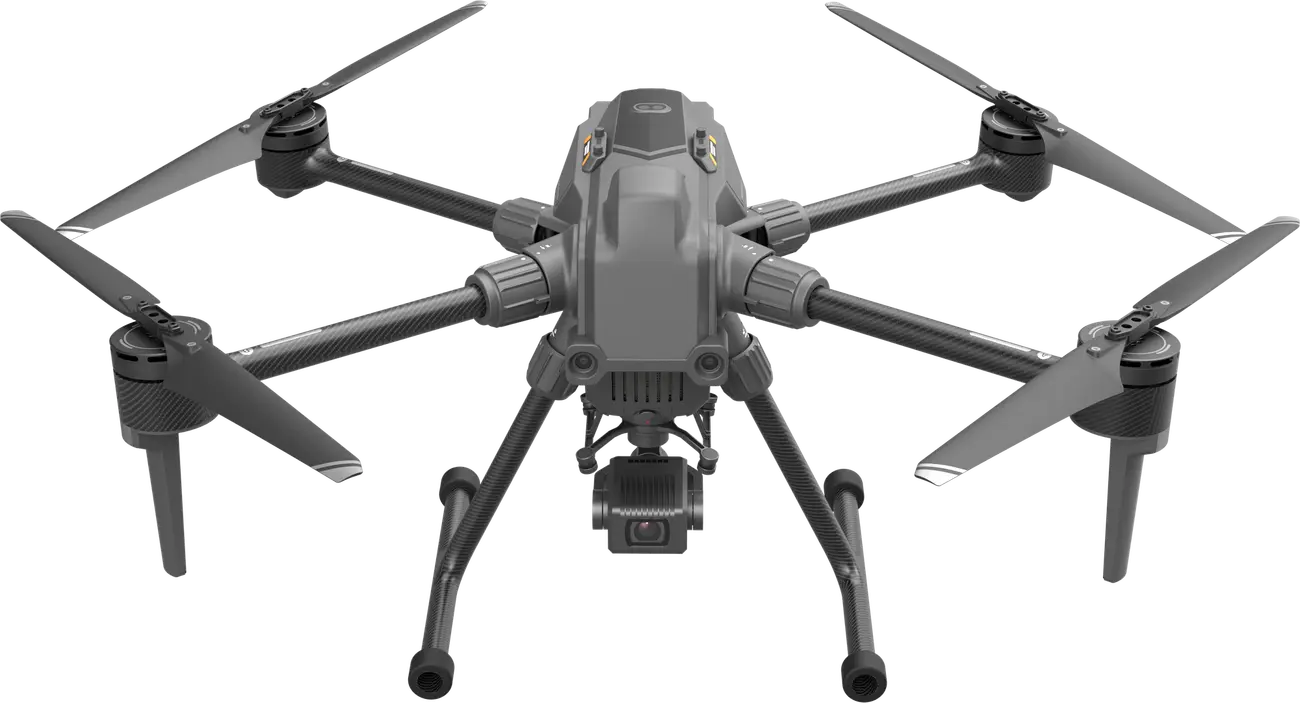

Industrial quadcopter
S400E
Flagship platform, built for industrial efficiency.
An industrial quadcopter with a 3 kg payload capacity, 15 km video transmission and millimetre-wave radar obstacle avoidance on every side.
- Max flight time
- 58 min
- Video transmission
- 15 km
- Payload capacity
- 3 kg
- Infrared resolution
- 1280×1024
- Quadra-sensor camera computing
- 21 TOPS
Overview
Features
- Up to 58 min flight time
- Carries up to 3 kg of payload
- Millimetre-wave radar obstacle avoidance at the front, the sides, above, below and behind
- Video transmission up to 15 km, with relay networking between aircraft
- ADS-B receiver to keep clear of civil aircraft
- Target recognition, follow and inspection with a compatible payload
- IP45 ingress protection
- Docking version: one system with the K01 auto docking station
- Compatible payloads

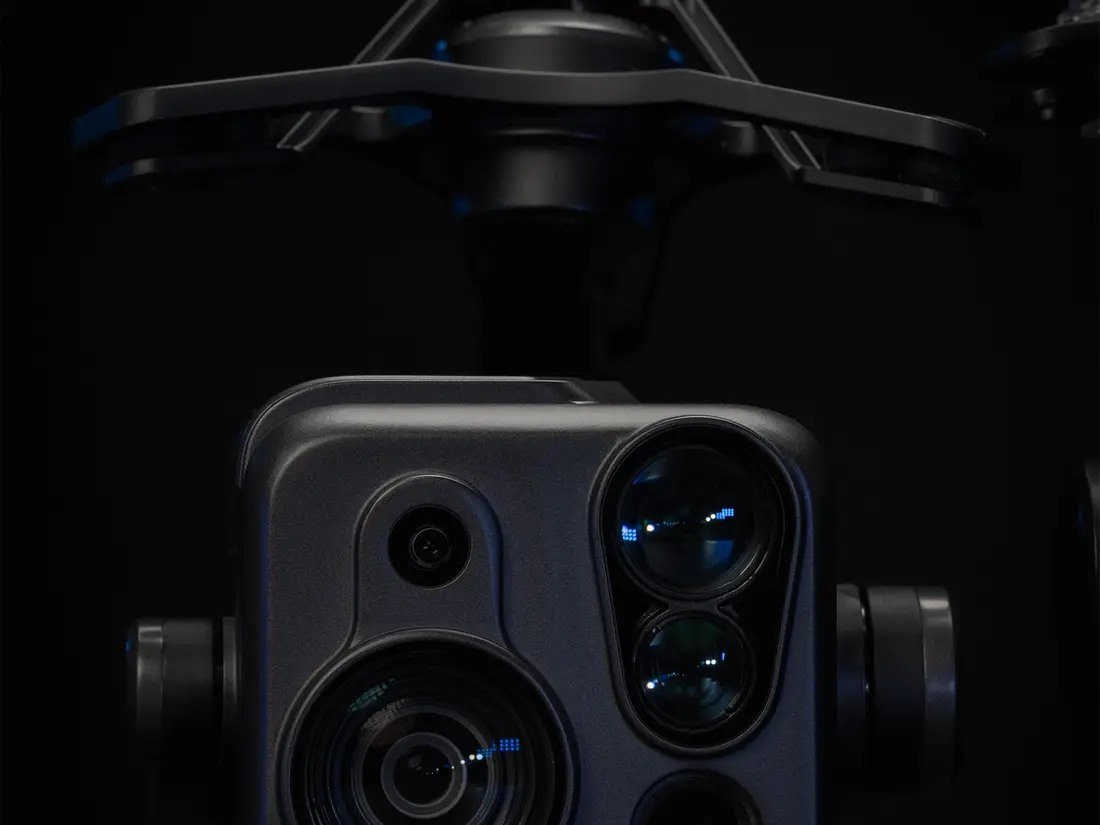

- PQL01 Quad-sensor gimbal camera Ask us about other payloads for the S400E.
Highlights
Built for high industrial efficiency
-
58 min
Max flight time
Long battery life means fewer battery swaps for the same amount of work, so each task is finished sooner.
-
15 km
Video transmission
A stable, reliable link returns live images and data quickly, so remote operation stays real-time.
-
3 kg
Professional, powerful and lightweight
Carries payloads for utilities, fire-fighting, environmental protection, law enforcement and social management, in a backpack-sized airframe that is easy to handle in the field.
-
1280×1024
Thermal imaging
An effective infrared resolution of 1280×1024 shows more detail, and dual-light fusion imaging gives clearer edges and outlines than infrared alone.
-
≤1.25 kg
Portable all-in-one remote control
Its external battery weighs no more than 1.25 kg. A large, bright, high-resolution touch screen stays readable in strong sunlight.

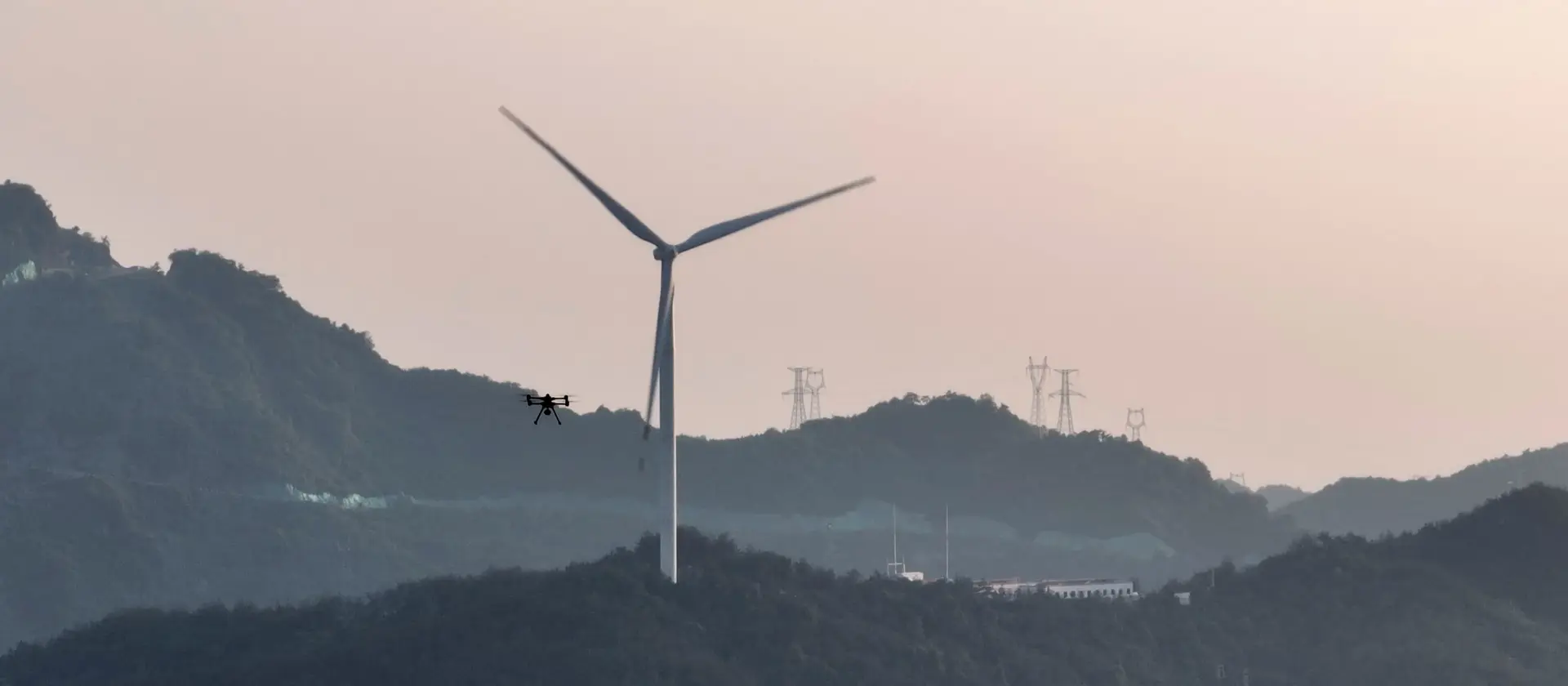

Relay networking
Multi-machine relay, cross-barrier communication
Relay networking supports One-Control-Two (one remote controls two drones), Two-Control-One (two remotes control one drone) and Star Networking (several drones linked).
Over long distances and obstacles such as mountains and buildings, even where there is no network, one S400E can relay the signal and take operations beyond the reach of a single drone.
Specifications
Specifications
| Max flight time | 58 min |
|---|---|
| Unfolded dimensions | 549 × 592 × 424 mm (propellers excluded) |
| Folded dimensions | 347 × 367 × 424 mm (tripod and propellers included) |
| Max take-off weight | 7 kg |
| Diagonal wheelbase | 725 mm |
| Payload capacity | 3 kg (safe flight speed reduced to 15 m/s at max load) |
| Max horizontal speed | 23 m/s (sport mode, no wind) |
| Max take-off altitude | 5000 m |
| Max wind resistance | 12 m/s |
| Hovering accuracy, GNSS | Horizontal ±1.5 m; vertical ±0.5 m |
| Hovering accuracy, vision | Horizontal ±0.3 m; vertical ±0.3 m |
| Hovering accuracy, RTK | Horizontal ±0.1 m; vertical ±0.1 m |
| Ingress protection | IP45 |
| Video transmission range | 15 km (at 200 m height, without interference) |
| Obstacle avoidance | Front 0.7–40 m (large metal objects up to 80 m); left and right 0.6–30 m (up to 40 m); up, down and back 0.6–25 m. Needs more than 15 lux. |
| AI functions | Target recognition, follow and inspection, with a compatible payload |
| Flight safety | ADS-B receiver |
Related
Related equipment
-
S400E auto docking station
K01
An automatic docking station designed as one system with the S400E. It launches, lands and charges the drone for routine inspection, with a weather station, cameras and a UPS.
View the K01
Request a quote
Request a quote for the S400E
Whether you have specific questions or want to discuss a potential project, we are here to assist you.
