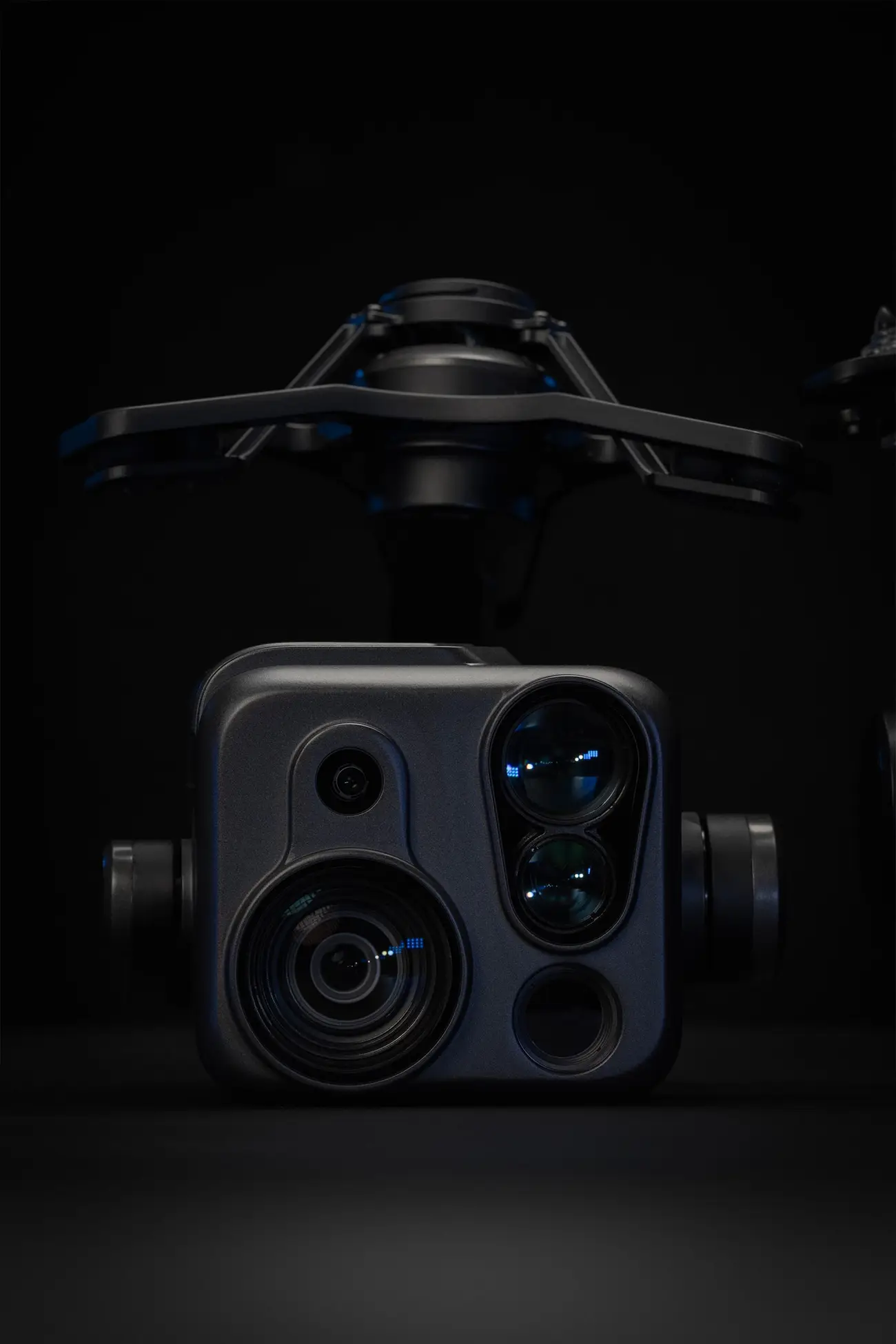

Quad-sensor gimbal camera
PQL01
Four sensors on one 3-axis gimbal: a 48 MP zoom camera, a 48 MP wide-angle camera, a 640×512 radiometric thermal camera and a laser rangefinder up to 1500 m.
- Weight
- ≤ 930 g
- Thermal resolution
- 640×512
- Thermal band
- 8–14 µm
- Thermal digital zoom
- 2×, 4×, 8×
Overview
Features
- Switch quickly between the zoom view and the wide-angle view
- Thermal camera: 640×512, 13 mm athermal lens, full-frame and regional temperature measurement, 10 palettes
- Laser rangefinder, 5–1500 m, with laser pinpointing for target coordinates
- 21 TOPS of computing for multi-sensor fusion and AI algorithms
- Used in power, oil pipeline and solar (PV) inspection, and in city and forest fire-fighting
- Works with
- S400E Listed for the S400E and for dock operation with the K01.
- Versions
-
- PQL01E — ask us for its specification
Specifications
Specifications
| Weight | ≤ 930 g |
|---|---|
| Dimensions | 153.5 × 163 × 179.7 mm |
| Stabilisation | 3-axis (pan, roll, tilt) |
| Structural limits | Pan −330° to +330°; roll −90° to +60°; tilt −135° to +45° |
| Control angles | Pan −300° to +300°; tilt −90° to +30° |
| Max rotation speed | 100°/s (adjustable) |
| Thermal resolution | 640×512 |
| Thermal band | 8–14 µm |
| Thermal lens | 13 mm, F1.0, athermal prime lens |
| Thermal accuracy | ±2 °C or ±2 %, whichever is greater |
| Thermal digital zoom | 2×, 4×, 8× |
| Zoom camera | 1/2" CMOS, 6.8–120 mm, DFOV 66.1°–4.3° |
| Zoom camera photos | 8000 × 6000 (48 MP); 5160 × 3890 (20 MP) |
| Zoom camera video | 4000 × 3000 @ 25 fps; 3840 × 2160 @ 25 fps |
| Wide camera | 1/2" CMOS, 6.83 mm, DFOV 79° |
| Wide camera photos | 8000 × 6000 (48 MP); 5160 × 3890 (20 MP) |
| Wide camera video | 1920 × 1080 @ 25 fps |
| Laser range and wavelength | 5–1500 m; 905 nm |
| Laser resolution | 0.1 m |
| Laser power | < 1 mW (eye-safe) |
| Operating / storage temperature | −20 °C to 55 °C / −25 °C to 65 °C |
| Water resistance | IP44 |
| Power | 23 W stable; DC 12 V |
