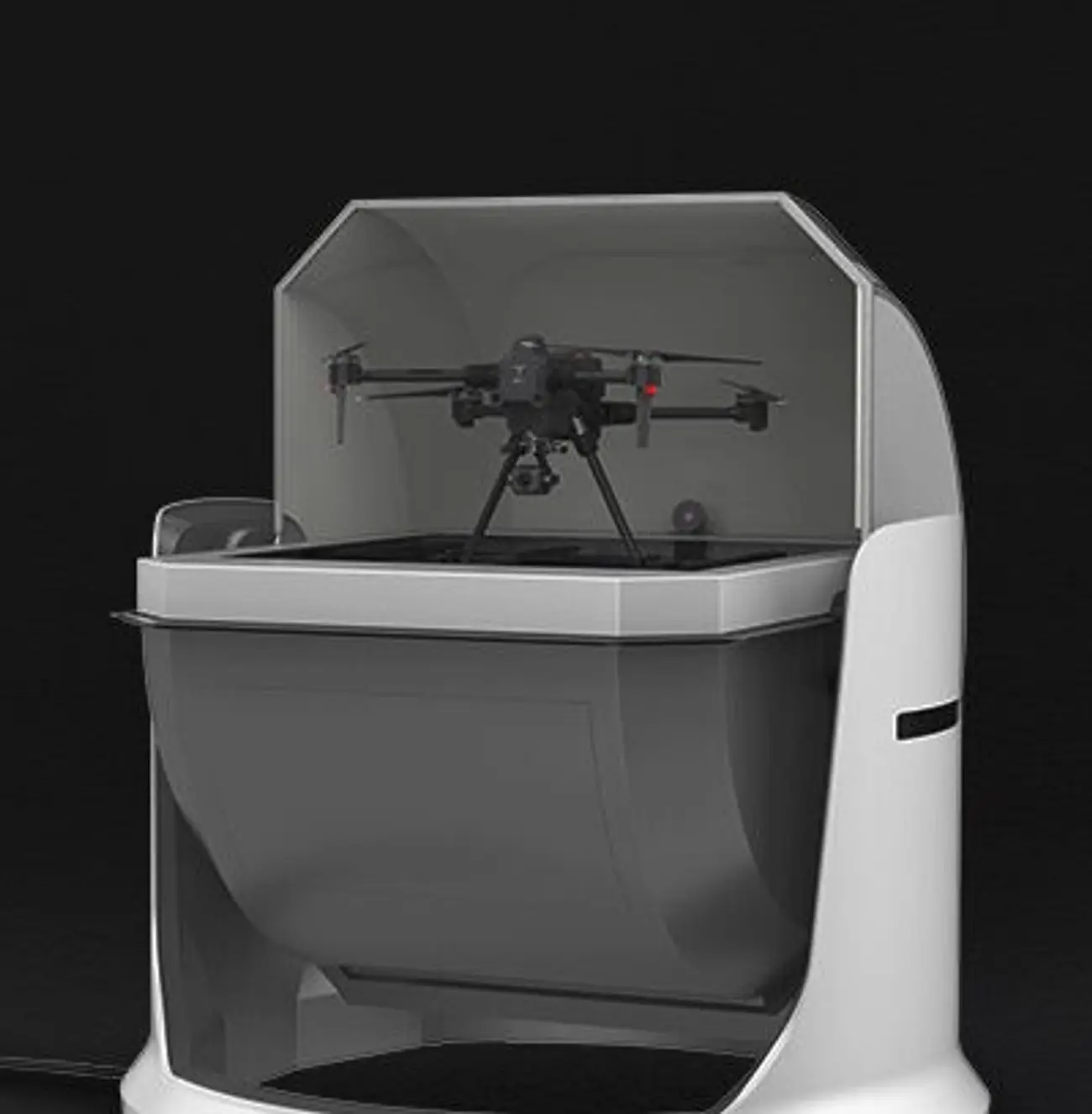

S400E auto docking station
K01
An automatic docking station designed as one system with the S400E. It launches, lands and charges the drone for routine inspection, with a weather station, cameras and a UPS.
- Compatible UAV
- S400E
- Charging
- Automatic
- Landing positioning
- RTK and vision
- Video transmission and control range
- 8 km
Overview
Features
- One-click activation: the drone takes off automatically, and the dock manages emergencies on its own
- Working radius of 8 km for autonomous inspection; several docks can relay the drone between them
- Rolling cover designed against wind, snow, freezing rain and falling objects
- Weather station for wind speed, rainfall, temperature, humidity and air pressure
- HD cameras inside and outside for 24-hour monitoring; smoke, water and temperature sensors in the cabin
- Built-in air conditioning with its own air channel keeps the cabin at a constant temperature
- Battery health management: controlled charging and discharging to extend battery life
- Landing by RTK with vision as a backup, including at night
- UPS backup with five hours of emergency power
- Managed through a web back-end, with an SDK; works with the UVER platform
- Works with
- S400E Built as one system with the S400E, the only UAV it is listed for.
Specifications
Specifications
| Dimensions, cover open | 1460 × 1460 × 1110 mm |
|---|---|
| Compatible UAV | S400E |
| Charging | Automatic |
| Landing positioning | RTK and vision |
| Video transmission and control range | 8 km |
| Network access | Ethernet, 10/100/1000 Mbps |
| Operating temperature | −35 °C to 50 °C |
| Operating humidity | ≤ 95 % |
| Max operating altitude | 5000 m |
| Ingress protection | IP54 |
| Power | 1700 W (max) |
| Weather monitoring | Wind speed, precipitation, temperature, humidity, air pressure |
| Backup power | UPS, five hours of emergency battery life; supports night landing |
| Control | Web; SDK available |
