Light quadcopters
P200 series

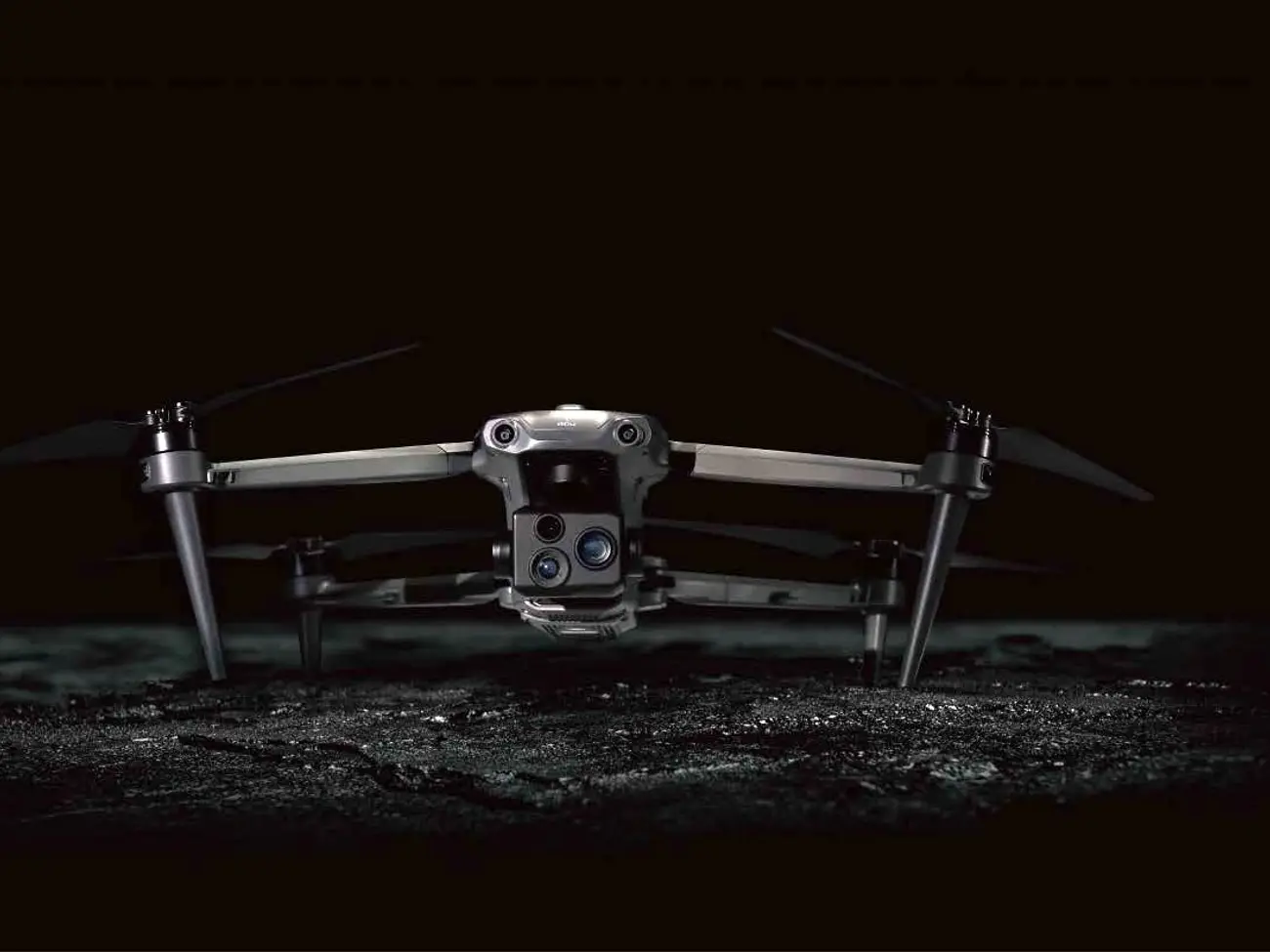

Foldable light quadcopters on one airframe, differing by camera: dual-sensor (P200), trio-sensor with thermal (P220), and quad-sensor with thermal and laser ranging (P220 Pro, in 640 and 1K thermal versions).
- Wheelbase
- 486 mm
- Max take-off weight
- 2050 g
- Max ascent speed
- 8 m/s
- Max descent speed
- 6 m/s
Overview
Features
- Up to 42 min flight time (P200, P220) or 39 min (P220 Pro)
- Image transmission up to 15 km (FCC) or 8 km (CE/SRRC/MIC)
- Obstacle avoidance by binocular sensors in six directions, with AI detection of small obstacles
- Safe return home when satellite and data links are disrupted: visual positioning and frequency-hopping transmission
- 48 MP wide-angle and 48 MP tele cameras: 10× optical and up to 160× hybrid zoom, with autofocus in as little as 60 ms
- Three-axis mechanical gimbal with electronic stabilisation
- Thermal and zoom views zoom together; 4K full-colour night video in low light
- P220 Pro: laser rangefinder from 10 to 1500 m that measures a target's position and distance
- AI tracking that keeps a selected target in frame and re-acquires it if lost
- 21T on-board computing; optional 100T AI box
- Optional modules: RTK, BeiDou positioning, 4G and 5G, parachute, megaphone and searchlight
- Works with the K02 battery-swap dock and the K03 charging dock
- Compatible payloads
- TTZ-200 spotlight Ask us about other payloads for the P200 series.
Models
Compare the models
| P200 | P220 | P220 Pro 640 | P220 Pro 1K | |
|---|---|---|---|---|
| Camera | Dual-sensor: wide, tele | Trio-sensor: wide, tele, thermal | Quad-sensor: wide, tele, thermal, laser | Quad-sensor: wide, tele, thermal, laser |
| Dimensions, folded | 175 × 272 × 130 mm | 175 × 272 × 130 mm | 175 × 272 × 148 mm | 175 × 272 × 148 mm |
| Dimensions, unfolded | 613 × 699 × 133 mm | 613 × 699 × 133 mm | 613 × 699 × 160 mm | 613 × 699 × 160 mm |
| Weight | 1750 g | 1750 g | 1860 g | 1860 g |
| Max flight time | 42 min | 42 min | 39 min | 39 min |
| Wide-angle camera | 48 MP | 48 MP | 48 MP | 48 MP |
| Tele camera | 48 MP, 10× optical, 160× hybrid | 48 MP, 10× optical, 160× hybrid | 48 MP, 10× optical, 160× hybrid | 48 MP, 10× optical, 160× hybrid |
| Thermal camera | — | 640 × 512 @ 30 fps | 640 × 512 @ 30 fps | 1280 × 1024 @ 30 fps |
| Laser ranging | — | — | 10–1500 m | 10–1500 m |
Specifications
Shared specifications
| Wheelbase | 486 mm |
|---|---|
| Max take-off weight | 2050 g |
| Max ascent speed | 8 m/s |
| Max descent speed | 6 m/s |
| Max wind resistance | 11.8 m/s |
| Max altitude | 6000 m |
| Communication distance | 15 km (FCC); 8 km (CE/SRRC/MIC) |
| Positioning accuracy, RTK | Horizontal 1 cm + 1 ppm; vertical 1.5 cm + 1 ppm |
| Ingress protection | IP43 |
Related
Related equipment
-
Battery-swap docking station
K02
A compact dock that swaps the drone's battery automatically in 2 minutes or less. It weighs about 115 kg and needs no more than 1 m² of floor space.
View the K02 -
Charging docking station
K03
A light dock that charges the drone in place, from 10 % to 90 % in 35 minutes or less. It weighs up to 50 kg and needs no more than 0.36 m² of floor space.
View the K03 -
Spotlight
TTZ-200
The P200 series searchlight, with on/off, flashing and warning modes, for night inspection, direction signalling and search and rescue.
