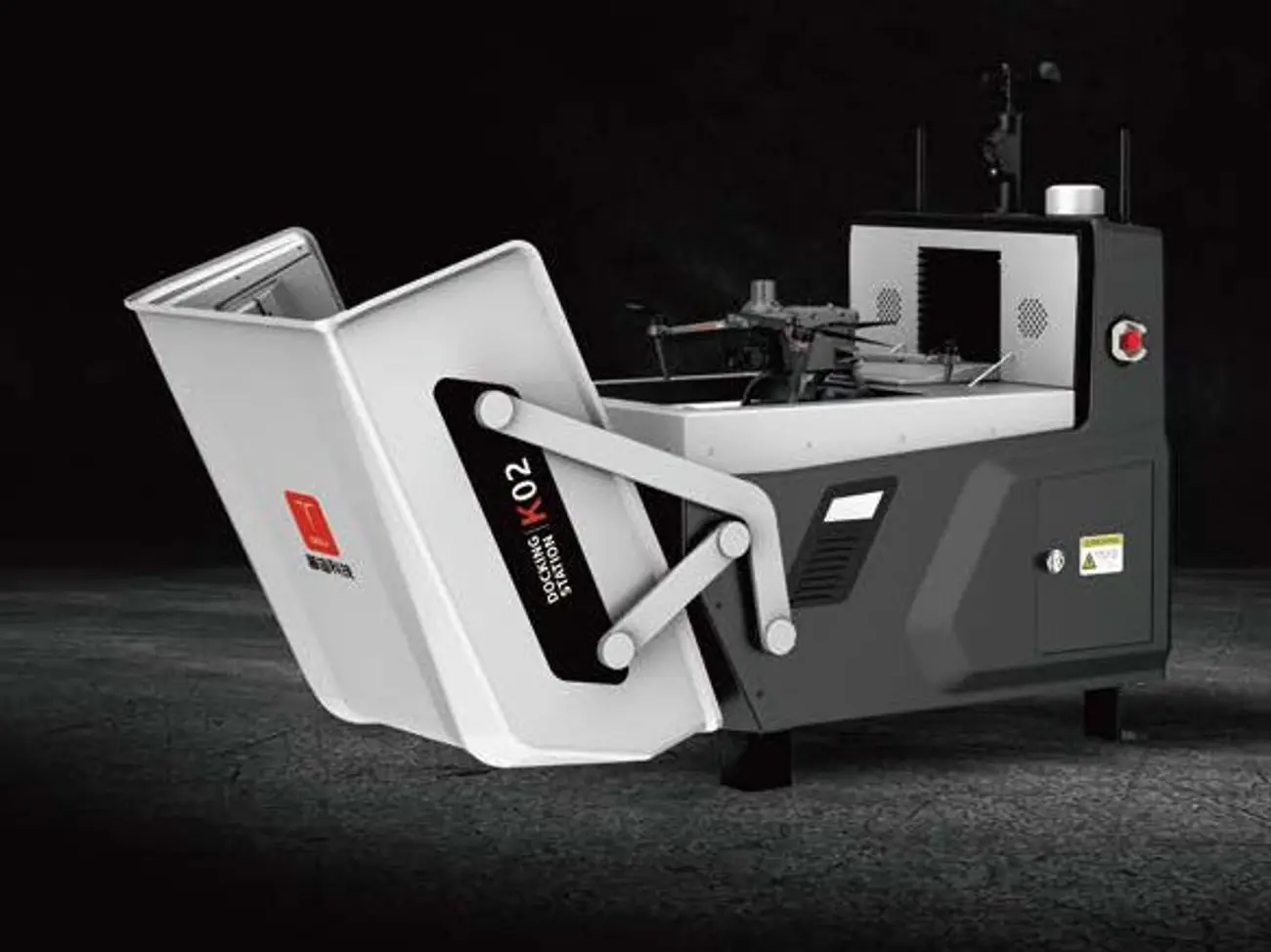

Battery-swap docking station

K02

A compact dock that swaps the drone's battery automatically in 2 minutes or less. It weighs about 115 kg and needs no more than 1 m² of floor space.

Overview

Features

Automatic battery replacement in ≤ 2 min, with a work interval of ≤ 3 min
Designed for 15 flights a day
4 battery slots, 3 battery packs included as standard
Small enough for a lift; installs on the ground, a roof or a tower
Built-in RTK base station, temperature control and environmental sensing
Protected against dust, water, wind, lightning, frost and salt fog
Relay flight from one dock to another over a self-organising network
Remote operation through the UVER platform; API, MSDK and PSDK interfaces; optional edge computing module

Specifications

K02 specifications
Dimensions, cover closed	≤ 1030 × 710 × 860 mm
Dimensions, cover open	≤ 1600 × 710 × 860 mm (excluding rain gauge, weather station and antenna)
Weight	≤ 115 ± 1 kg
Floor space	≤ 1 m²
Battery replacement time	≤ 2 min
Work interval	≤ 3 min
Batteries	Up to 4 (3 included as standard)
Power	100–240 V AC, 50/60 Hz; max ≤ 1500 W
Emergency battery	≥ 5 h
Max inspection range	8000 m
Data transmission, UAV to dock	≤ 200 Mbps
Wind resistance	Inspection 12 m/s; precise landing 8 m/s
Operating temperature	−20 °C to 50 °C
Max operating altitude	5000 m
Relative humidity	≤ 95 %
Dust and water protection	IP55
Night precise landing, leapfrog inspection	Yes
RTK base station, fill-in light, lightning and salt-spray protection	Yes
Anti-freezing	Cabin door heating
Monitoring outside the cabin	Temperature, humidity, wind speed, rainfall, light
Monitoring inside the cabin	Temperature, humidity, smoke, vibration, immersion
Cameras	Inside and outside
Edge computing and mesh modules	Optional
4G	SIM card optional
