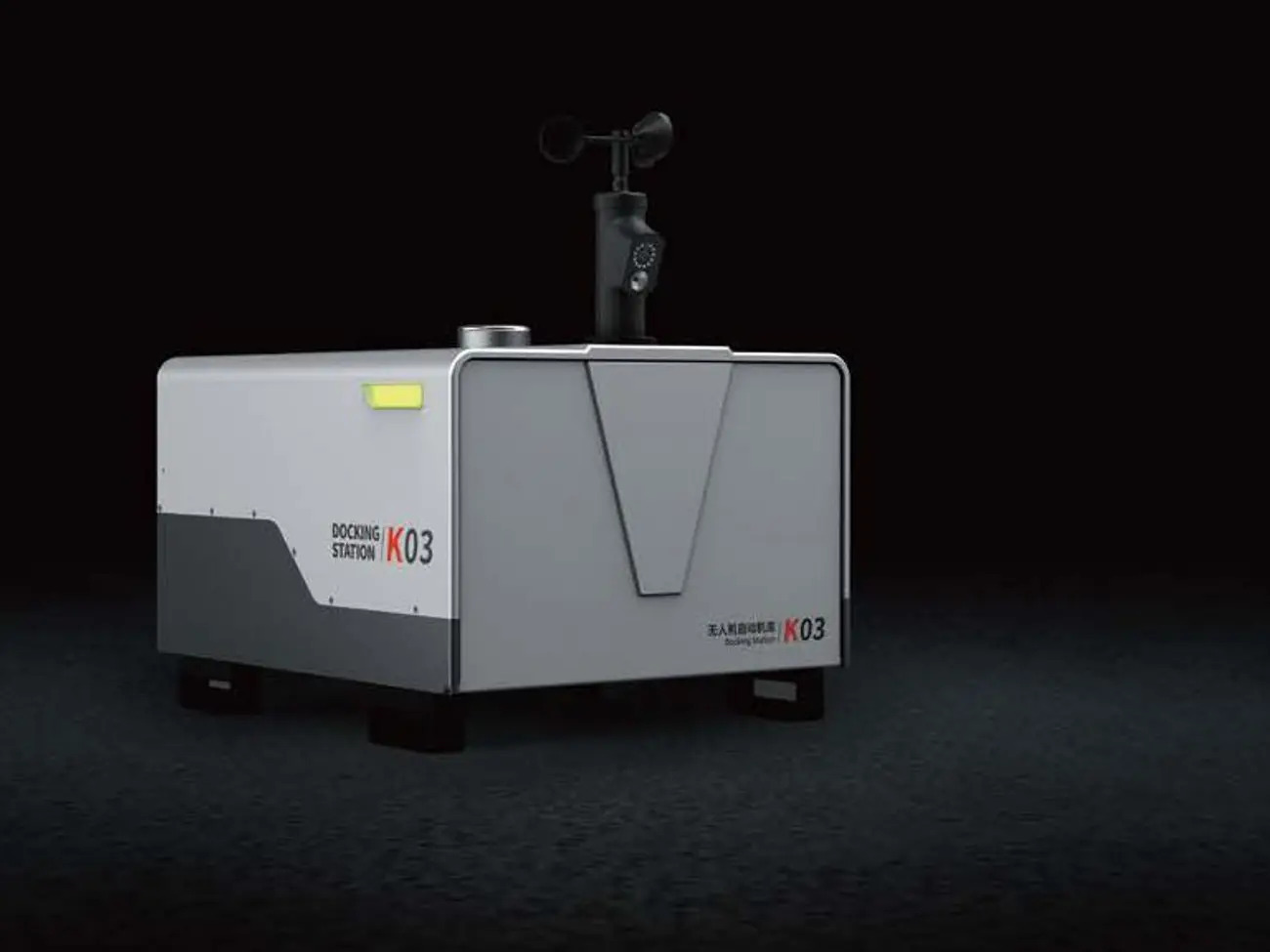

Charging docking station
K03
A light dock that charges the drone in place, from 10 % to 90 % in 35 minutes or less. It weighs up to 50 kg and needs no more than 0.36 m² of floor space.
- Weight
- ≤ 50 kg
- Floor space
- ≤ 0.36 m²
- Standby power
- 10 W
- Emergency battery
- ≥ 5 h
Overview
Features
- Charges the battery from 10 % to 90 % in ≤ 35 min
- Weighs ≤ 50 kg: two people can carry it, it fits in a lift and it can be mounted on a tower
- Deep standby at 10 W, so it can run on solar power and on power towers
- Wi-Fi 6 link to the drone at up to 200 Mbps: a 48 MP photo transfers in ≤ 0.5 s
- Optional mesh module to reach the nearest network node where there is no public network
- Relay flight from one dock to another; the operator can take manual control during an autonomous flight
- Control through the UVER platform; API, MSDK and PSDK interfaces; optional edge computing module
- Works with
- P200 series The P200 series is designed to work with the K03.
Specifications
Specifications
| Dimensions, cover closed | 650 × 555 × 370 mm |
|---|---|
| Dimensions, cover open | 1380 × 555 × 370 mm (excluding weather station and tripod) |
| Weight | ≤ 50 kg |
| Floor space | ≤ 0.36 m² |
| Charging time | ≤ 35 min (10 %–90 %) |
| Power | 100–240 V AC, 50/60 Hz; max ≤ 1000 W |
| Standby power | 10 W |
| Emergency battery | ≥ 5 h |
| Max inspection range | 8000 m |
| Data transmission, UAV to dock | ≤ 200 Mbps |
| Single 48 MP photo transfer | ≤ 0.5 s |
| Wind resistance | Inspection 12 m/s; precise landing 8 m/s |
| Operating temperature | −20 °C to 50 °C |
| Max operating altitude | 5000 m |
| Relative humidity | ≤ 95 % |
| Temperature control | TEC air conditioning |
| Dust and water protection | IP55 |
| Night precise landing, leapfrog inspection, UAV in-place detection | Yes |
| RTK base station, fill-in light, lightning and salt-spray protection | Yes |
| Anti-freezing | Cabin door heating |
| Monitoring outside the cabin | Temperature, humidity, wind speed, rainfall, light |
| Monitoring inside the cabin | Temperature, humidity, smoke, vibration, immersion |
| Cameras | Inside and outside |
| Edge computing and mesh modules | Optional |
| 4G | SIM card optional |
