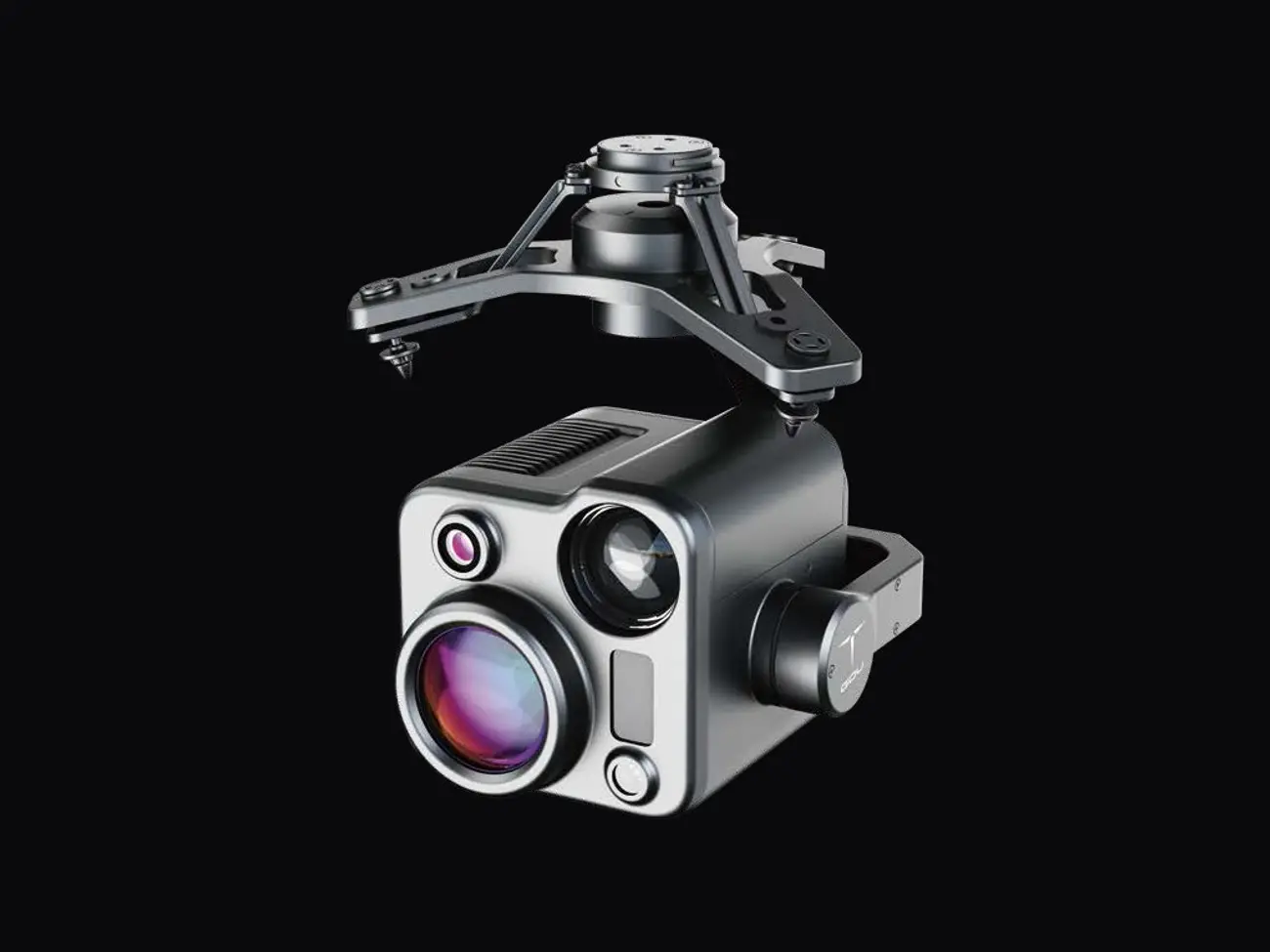

Penta-sensor smart gimbal camera
PWG01
Five modules on one gimbal: a 50 MP wide camera, an 80 MP 34× zoom camera, a 1280×1024 thermal camera, a laser rangefinder up to 2000 m and a near-infrared light.
- Laser range
- 3–2000 m
- Ingress protection
- IP44
Overview
Features
- 34× optical and up to 544× hybrid zoom
- 4K AI-enhanced full-colour night vision; IR-cut greyscale night mode
- Thermal (PWG01 only): 1280×1024 uncooled VOx, AI UHR mode up to 2560×2048, 32× digital zoom, linked zoom with the zoom camera
- Laser rangefinder 3–2000 m, with laser pinpointing for target coordinates
- 850 nm near-infrared light: a 16.8 m circle at 120 m
- AI detection and tracking of people, vehicles and vessels; electronic dehazing; image stabilisation
- 10.4T of AI computing
- Versions
-
- PWG01-SE — Quad-sensor version, without the thermal camera; otherwise the same specification
- PWG01E — ask us for its specification
Specifications
Specifications
| Mounting | All-in-one, detachable; 60-pin connector (network and serial) |
|---|---|
| Power consumption | Steady state ≤ 20 W |
| Dimensions | 166 × 163 × 184 mm |
| Stabilisation | 3-axis (pan, roll, tilt), ±0.004° |
| Control range | Pan −300° to +300°; tilt −90° to +30° |
| Max control speed | 5–100°/s (adjustable) |
| Wide camera | 1/0.98-inch, 50 MP, DFOV 82°, 24 mm equivalent, f/2.8 |
| Wide camera ISO | 100–25,600; night scene up to 1,600,000 |
| Zoom camera | 1/1.8-inch, 80 MP, DFOV 66.7°–2.9°, f/1.6–f/5.1 |
| Zoom camera ISO | 100–25,600; night scene up to 2,400,000 |
| Zoom | 34× optical; 544× hybrid |
| Video | 3840 × 2160 or 1920 × 1080 @ 30 fps |
| Thermal imager (PWG01) | Uncooled VOx, 8–14 µm, 12 µm pixel pitch |
| Thermal resolution (PWG01) | 1280×1024 @ 30 fps; photos up to 2560×2048 (UHR) |
| Thermal accuracy (PWG01) | High gain ±2 °C or ±2 %; low gain ±3 °C or ±3 %, whichever is greater |
| Laser range | 3–2000 m |
| Laser accuracy | ±(1 m + D × 0.15 %) |
| NIR light | 850 nm; FOV 8° ± 0.5° |
| Ingress protection | IP44 |
| Operating / storage temperature | −20 °C to 50 °C / −25 °C to 65 °C |
| Memory card | microSD up to 512 GB (UHS-I U3 or above) |
| Formats | R-JPG (thermal), JPG (wide and zoom), MP4 video |
