Compact quad-sensor gimbal camera
PQL02

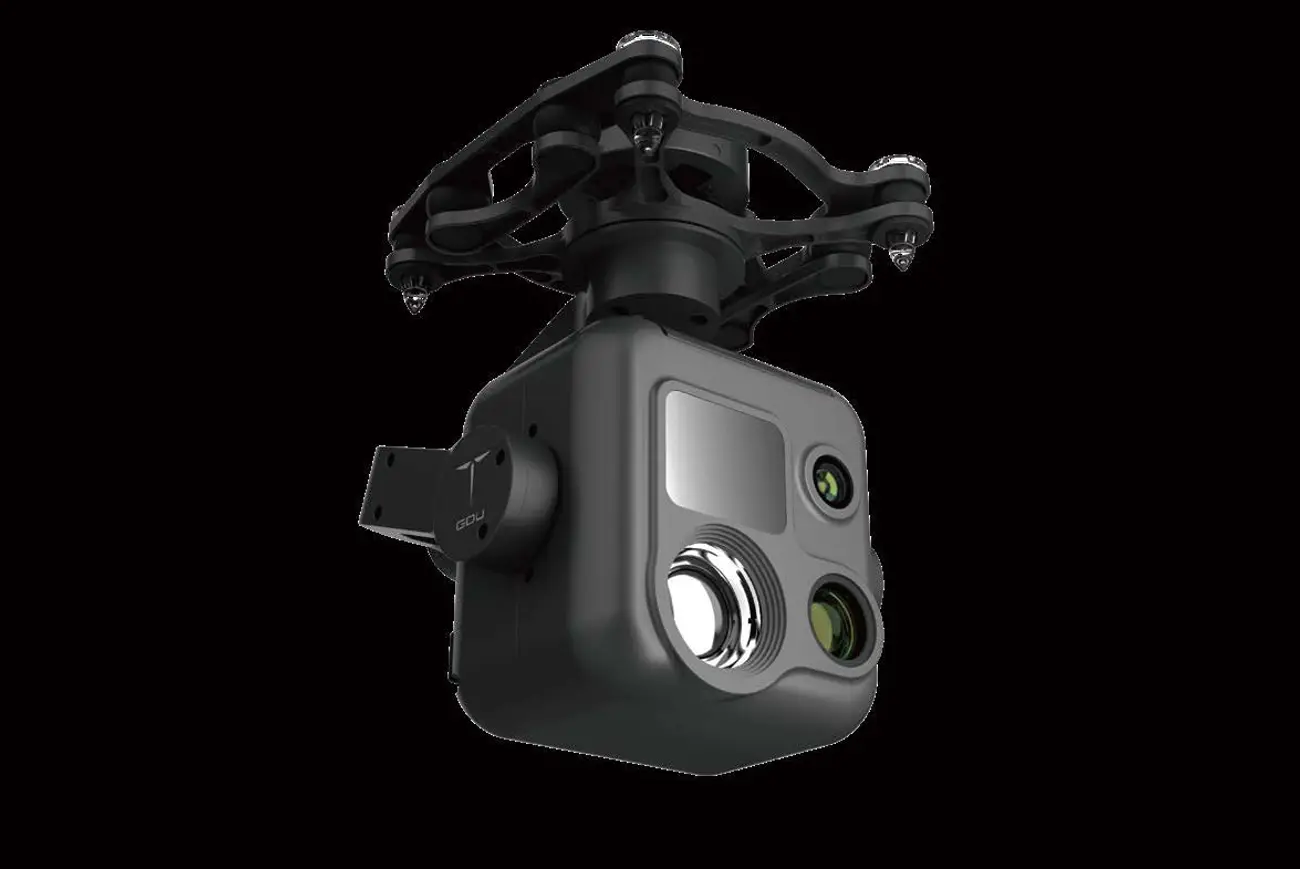

A compact 3-axis gimbal camera of 365–380 g with four sensors: wide-angle, 48 MP 10× zoom, 640×512 thermal (13 mm or 25 mm lens) and a laser rangefinder up to 1500 m.
- Max photo size
- 8000 × 6000
- Temperature measurement
- Spot and area
- Min shooting interval
- ≤ 2 s
Overview
Features
- 10× optical and 160× hybrid zoom; phase-detection autofocus in as little as 60 ms
- 640×512 thermal camera, with AI upscaling to 1280×1024 (PQL02 only)
- Laser rangefinder up to 1500 m, accuracy ±(1 m + 0.15 % of distance)
- AI starlight full-colour night vision, ISO up to 640,000
- 10.4T of on-board AI computing for recognition, positioning and tracking
- 3-axis mechanical gimbal plus electronic image stabilisation
- Versions
-
- PQL02-SE — Triple-sensor version, without the thermal camera
- PQL02E — ask us for its specification
Specifications
Specifications
| Weight | 365 g (13 mm thermal lens); 380 g (25 mm thermal lens) |
|---|---|
| Dimensions | 92.4 × 114.5 × 129 mm |
| Operating / storage temperature | −20 °C to 55 °C / −25 °C to 65 °C |
| Stabilisation | 3-axis (pan, roll, tilt) |
| Control range | Pan −300° to +300°; tilt −90° to +30° |
| Max control speed | 5–100°/s (adjustable) |
| Tele camera | 1/2-inch, 48 MP, f/3.7–f/4.2, DFOV 24.7°–9.7° |
| Tele zoom | 10× optical, 160× hybrid |
| Camera ISO | 100–25,600; night scene up to 640,000 |
| Max photo size | 8000 × 6000 |
| Wide camera | 24 mm equivalent focal length |
| Laser accuracy | ±(1 m + D × 0.15 %) |
| Thermal resolution (PQL02) | 640×512, or 1280×1024 in AI UHR mode |
| Thermal band and lens | 8–14 µm; 13 mm or 25 mm |
| Temperature measurement | Spot and area |
| Thermal accuracy | High gain ±2 °C or ±2 %; low gain ±3 °C or ±3 %, whichever is greater |
| Memory card | microSD up to 512 GB (UHS-I U3 or above) |
| Min shooting interval | ≤ 2 s |
| Formats | R-JPG (thermal), JPG (wide and zoom), MP4 video |
